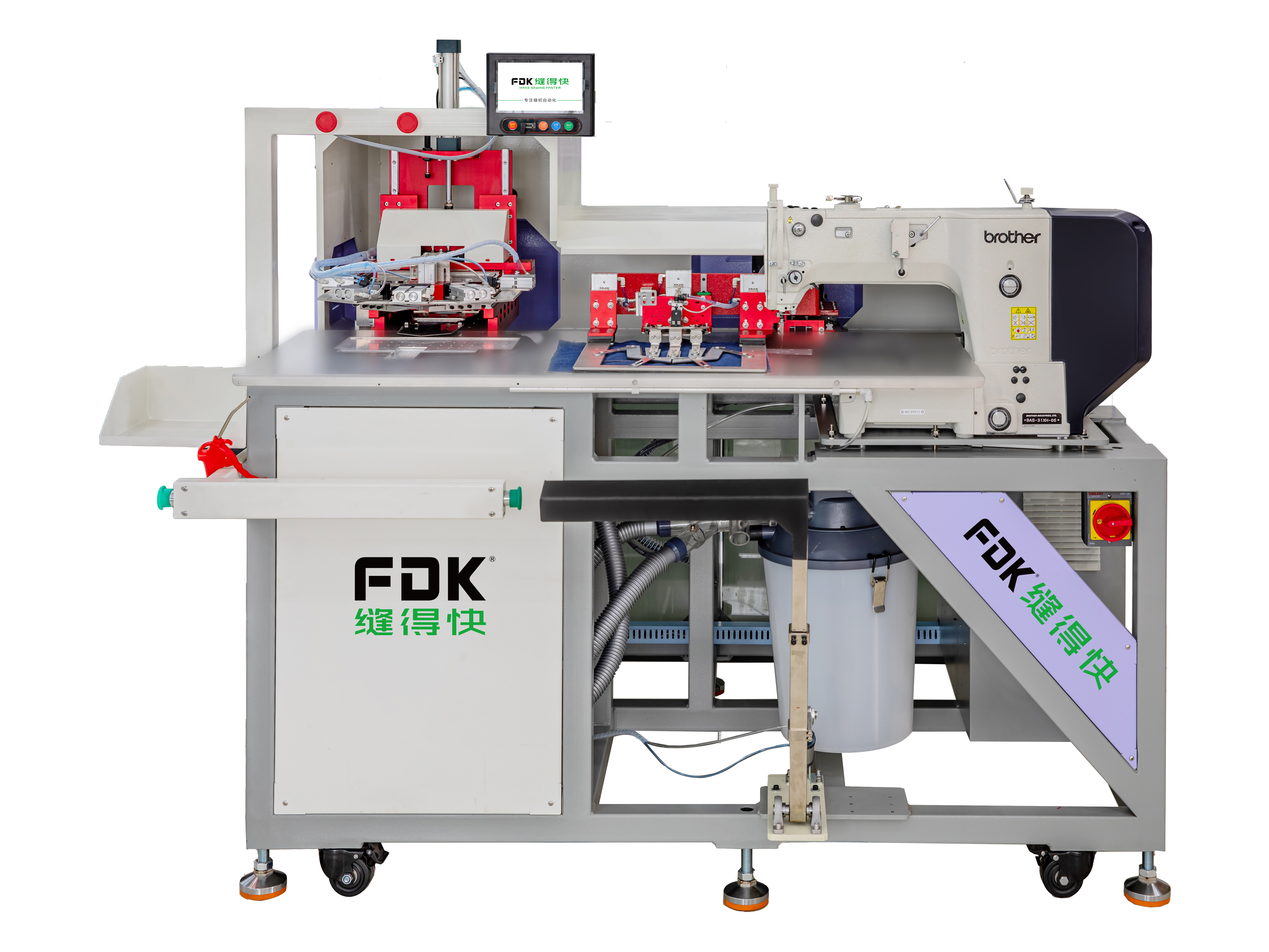

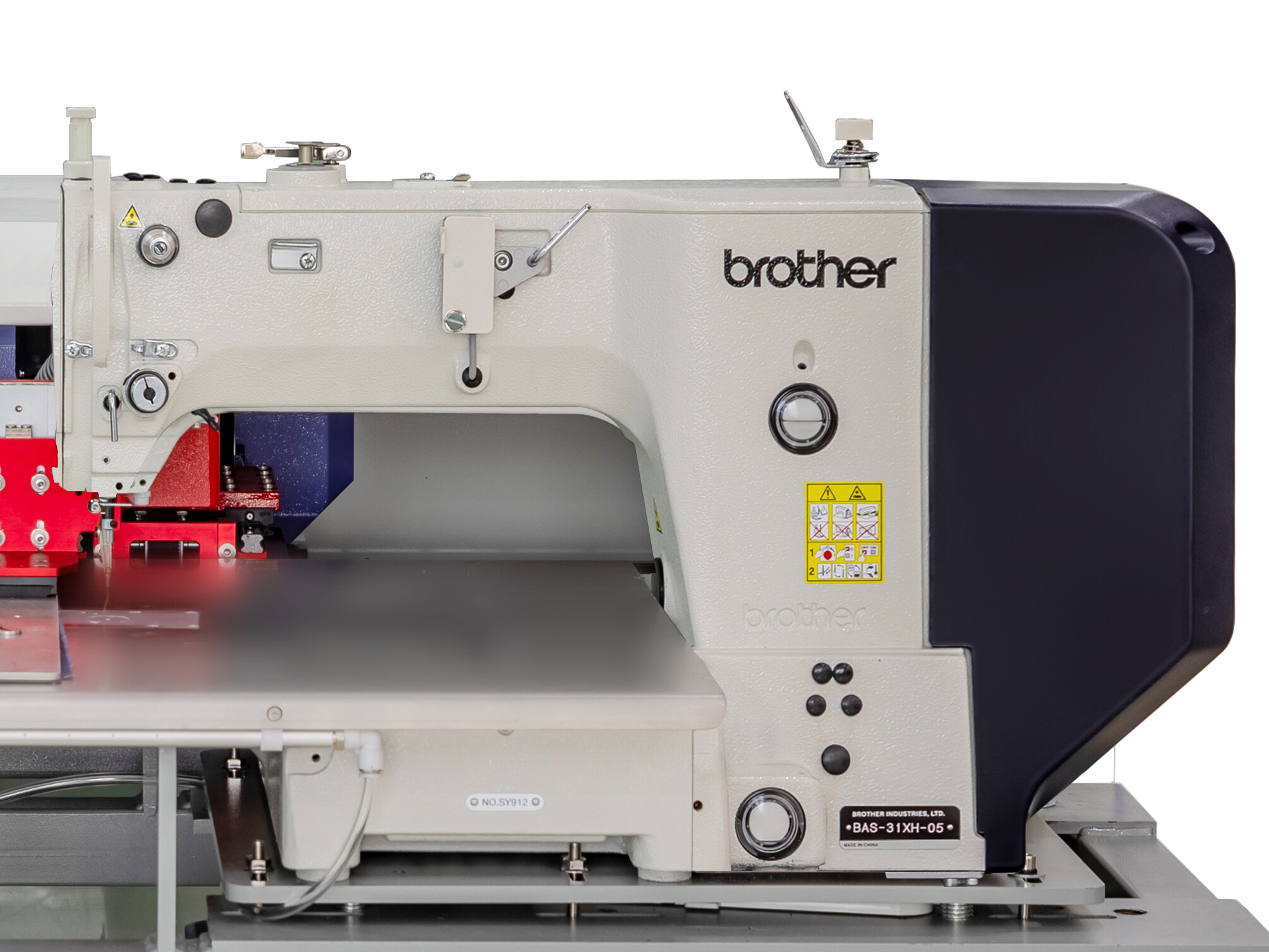

The above configuration is with Brother Bas-311H Pattern sewing machine head ( suitable for heavy duty material)

The structure is balanced and reasonable, the work is linear and smooth, and the production is exquisite

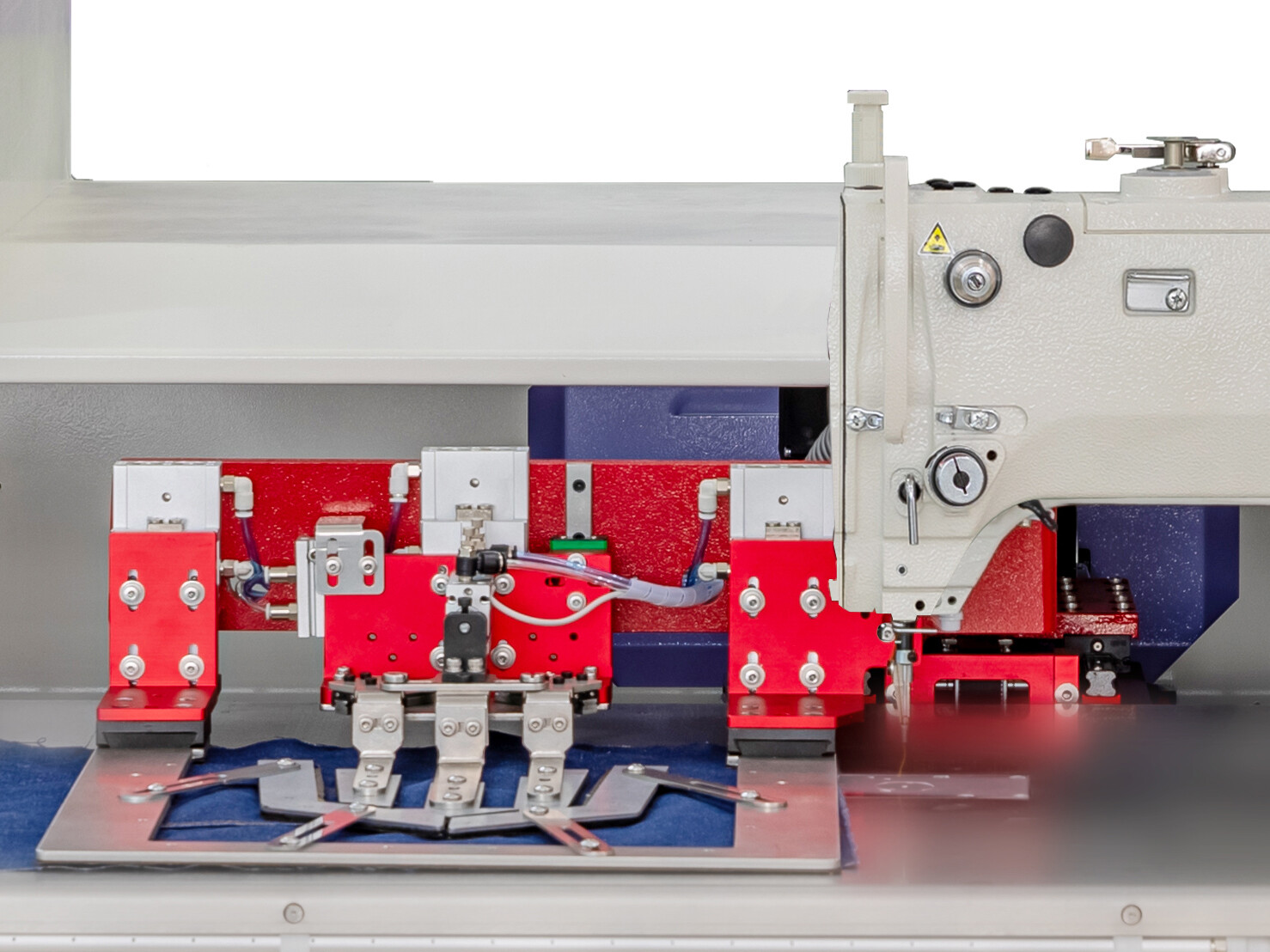

Quick pocket template switching

The exchange time of the pocket template can be completed in several minutes without using the tools, and can be handled flexibly, even in small batch production.

Applied to

Application for: jeans, knitwear, shirts, work clothes, home clothes, military uniforms and other stickers bags, back stickers and other processes, and according to the special needs of customers and customized.

Optional function

Optional machine heads

According to the requirements of different processes, the thickness of different fabrics to choose the most suitable machine head, including:

1、Japanese Brother series BAS-311 Pattern sewing machine head , 430HS Bartacking machine head, 7300 lockstitch machine head;

2、Japanese Juki series 210EN Pattern sewing machine head , DDL-8000A lockstitch machine head;

3、Japanese Mitsubishi series G shape 1010, 2516 Pattern sewing machine head;

4、Chinese AF series 2828 Pattern sewing machine head, which is specially recommended.

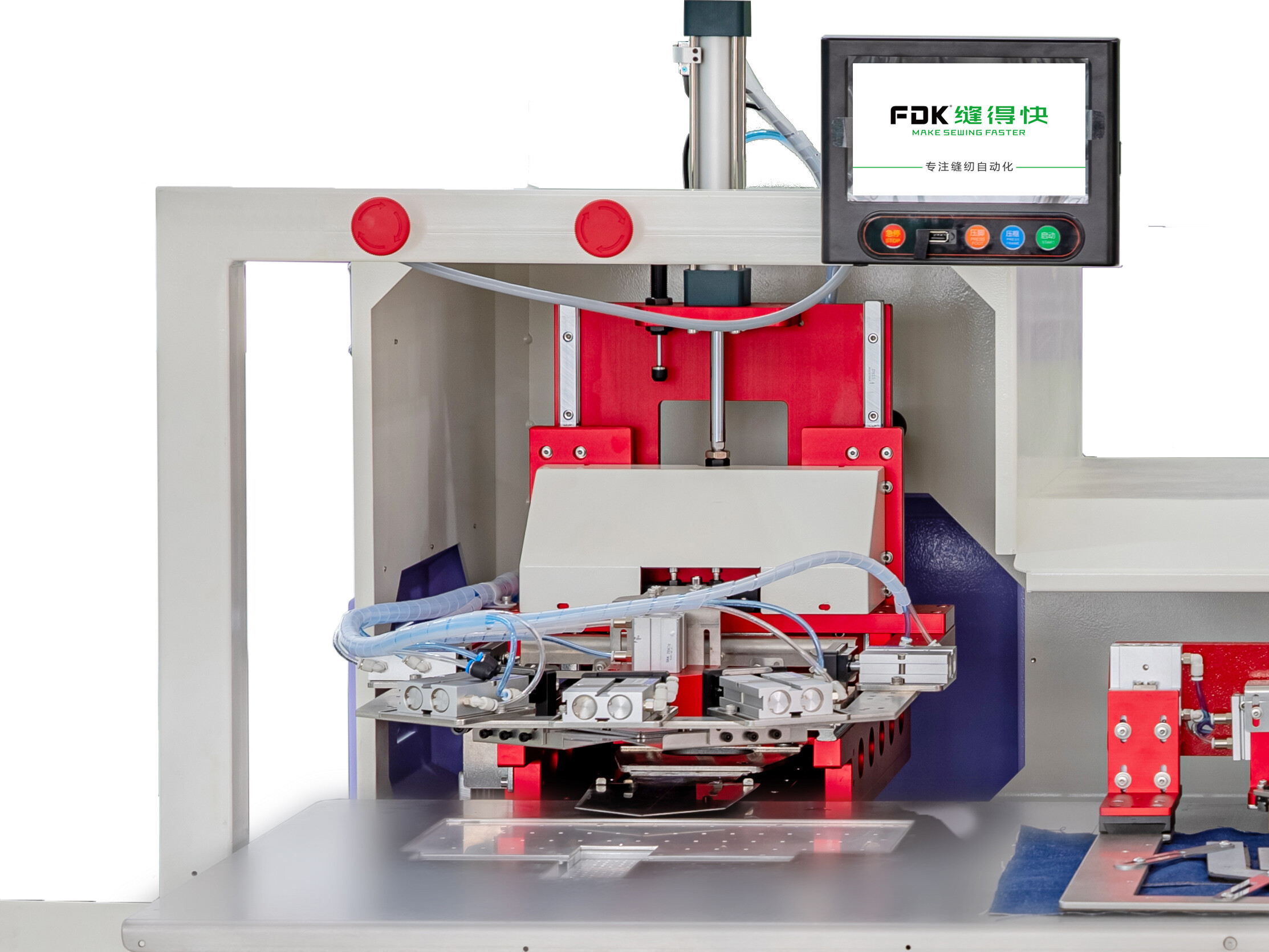

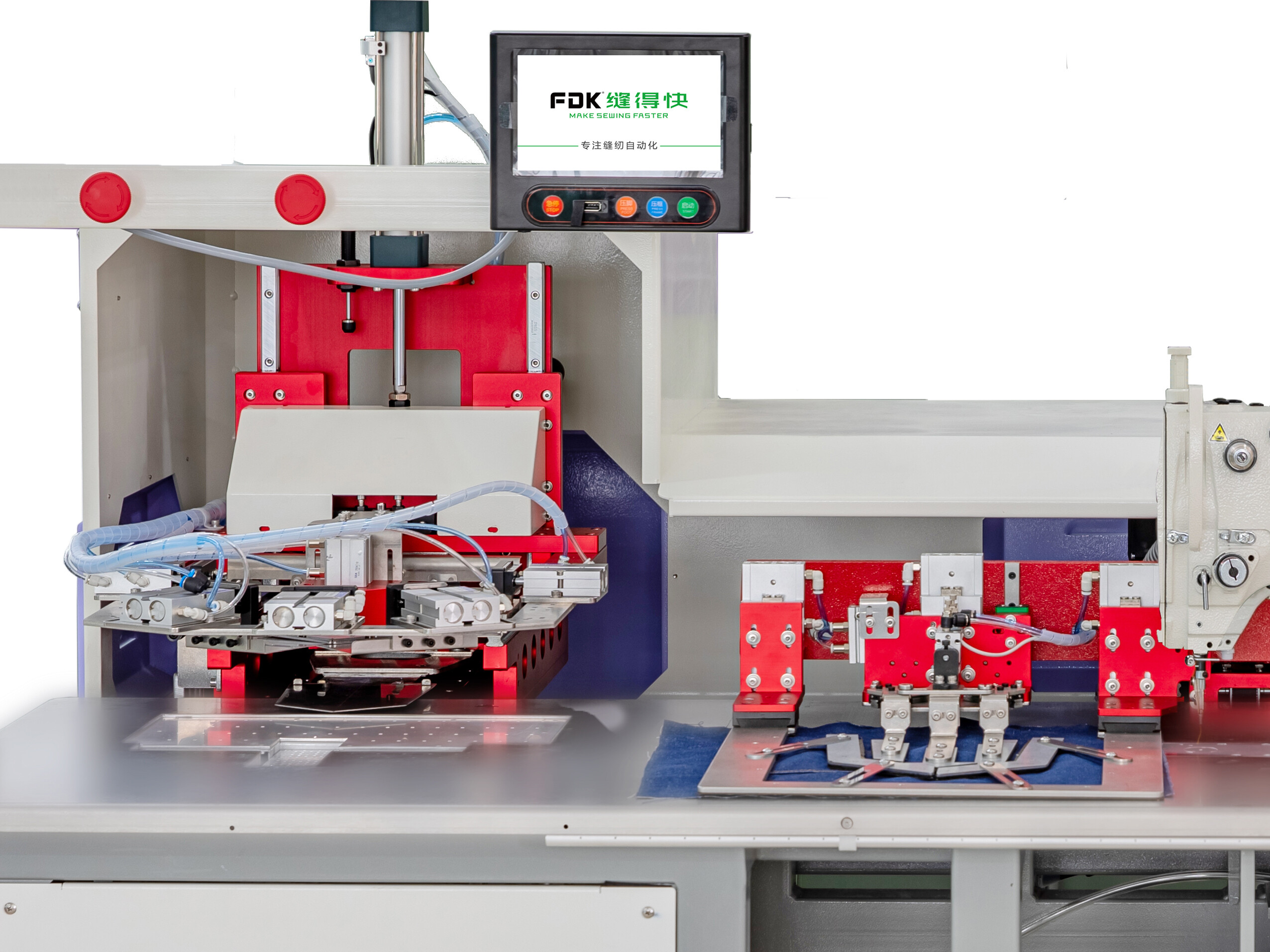

The whole machine computer program control, servo + air pressure drive, convenient operation, strong stability. According to the size of the pocket, the number of stitches are differ, the efficiency of 4-6pcs per minute.

Advantages and features

1. Brother BAS-311H pattern machine head is adopted to deal with the automatic pocket attaching for heavy duty material such as jeans with strong penetration

power.

2. equipped with infinite adjustable air suction positioning function,Align the function of checkered fabric , automatic folding, automatic feeding, automatic sewing,

automatic collecting and automatic thread breaking induction function.

3. new electronic tension adjustment, can be independent tension setting for the stitches.

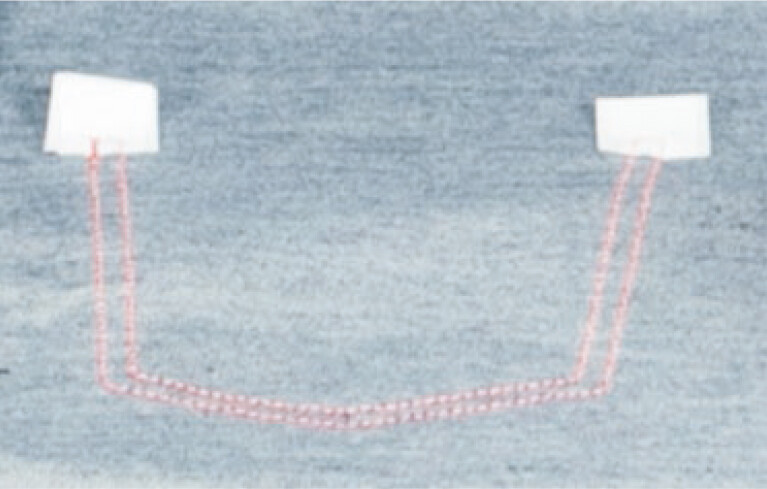

4. the normal double-line pocket efficiency is about 5 pockets per minute, about 120 pairs per hour.

5. equipped with instant use of mold, the user can change the mold within 5 minutes to create the storage pattern for new production.

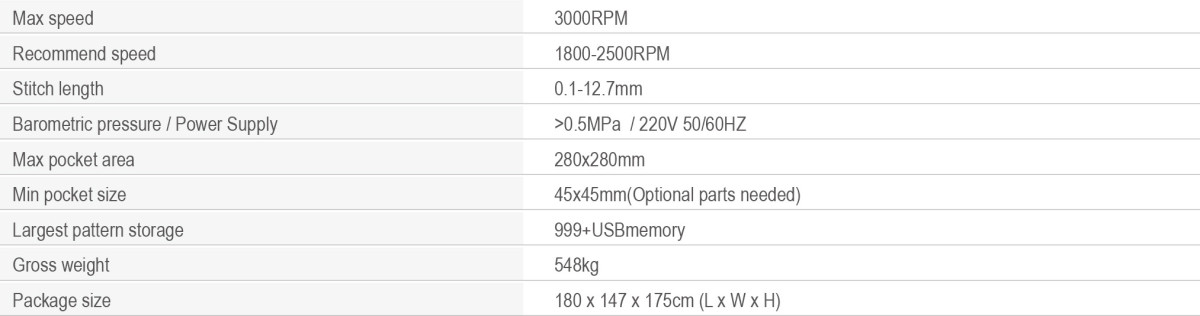

Parameters
