Features
1.The Four-Axis Design of Flexible Sewing, Can be on the Assembly Line of the Intelligent Template Machine
It covers an area of only 1.2 m * 1.2 m, which is fully suitable for the production line
2. Equipped with a thread catcher device at the beginning of sewing and a short thread tail function at the end of sewing
no thread at beginning sewing, easily exchange upper and bottom thread, greatly improve the sewing quality.
3. The RFID Fast Reading System
Adopting RFID chip technology, can freely preset template data, replace the template more convenient and accurate.

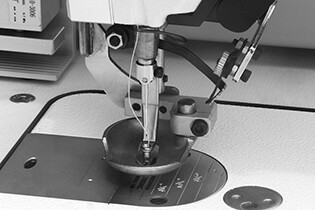

4. Double Presser Foot Design
A. independent rail presser foot effectively improve the leveling function of the template,avoid dislocation and clamp.
B. When sewing, the middle pressure foot changes according to the fabric thickness, which is more stable and the thread is more beautiful.

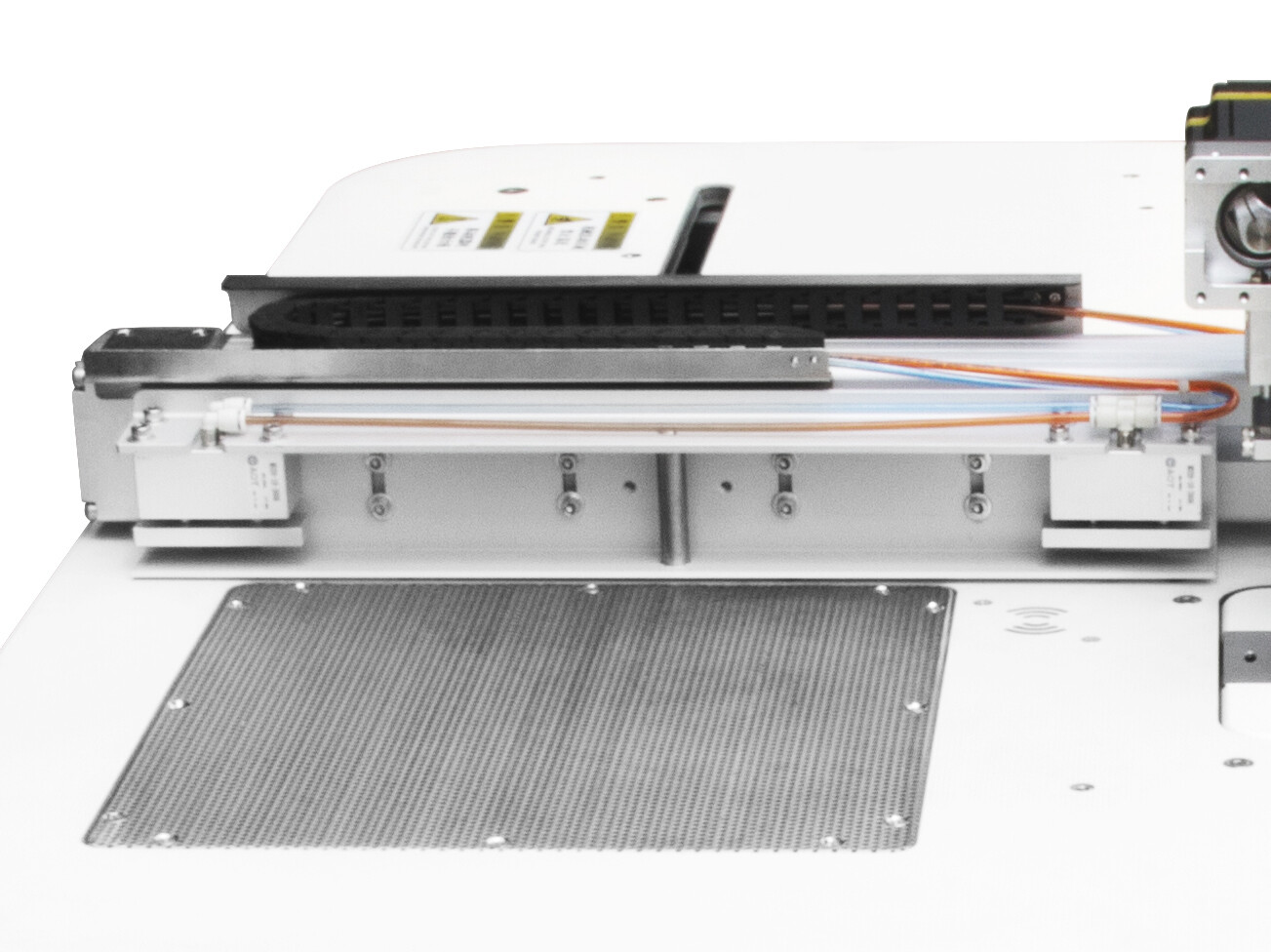

5. Optional And Effcient Air Absorption Module
Silent air suction system, low power strong air suction, can be automatically closed air suction during sewing , to avoid sucking the fabric caused by deformation.
6. Optional Laser Cutting Device to Improve the Demand of
Garment Process

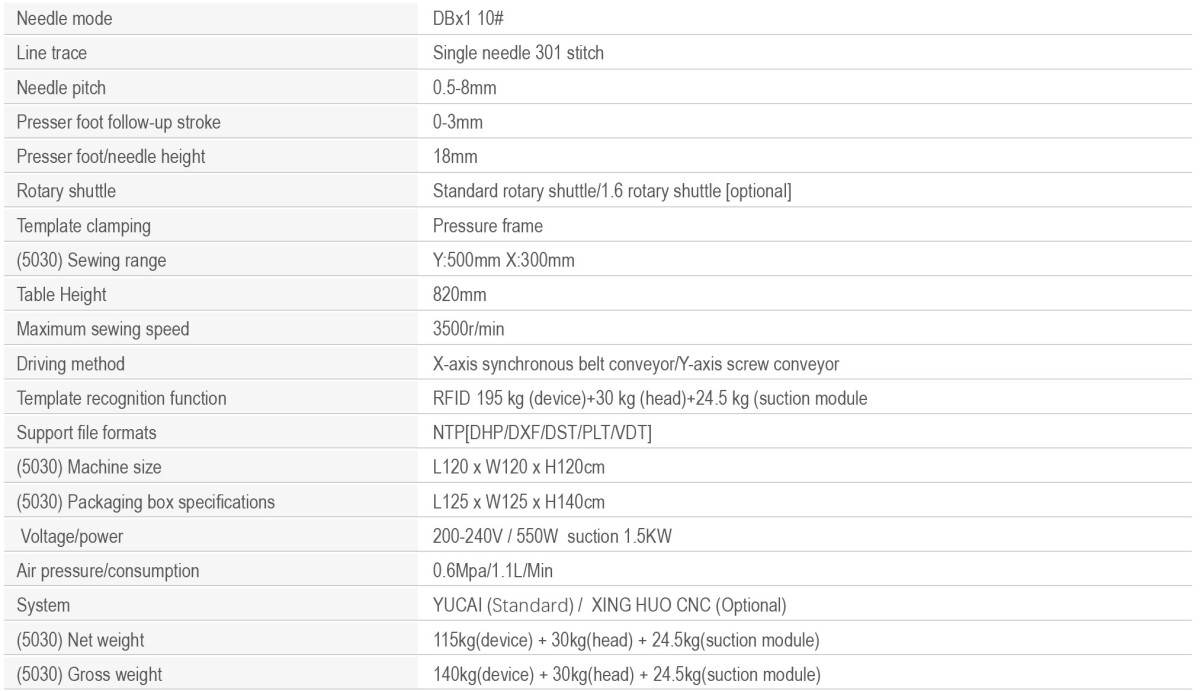

Parameters
